Quad LFO

45,00 90,00

SKU: 1-1 Category:

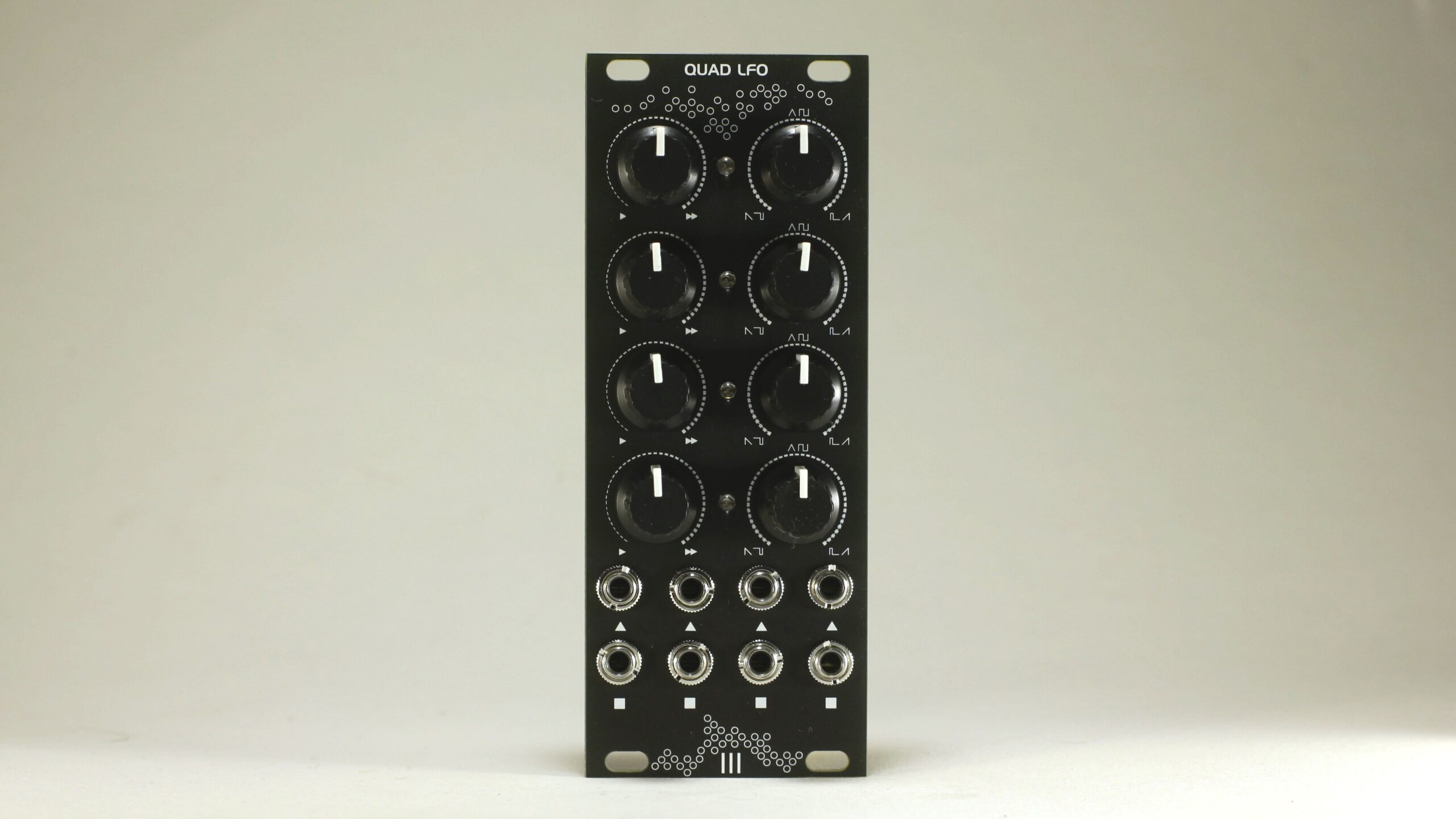

Tre Modular – Quad LFO features four independent Low-Frequency Oscillators.

Quad LFO offers both super slow and low audio rate speeds. It ranges from 0.013Hz to 40Hz. You can use it for slow moving patches or audio rate modulation.

Other notable feature of this Quad LFO is skew/pulse width control. It is similar to one found on Korg`s MS-20 Modulation Generator. Rotate the knob to morph between sawtooth, triangle, and ramp waveforms. Turn counterclockwise for sawtooth waveform and clockwise for ramp waveform and in the middle it produces triangle waveform.

At the corresponding channels square wave output this control changes the pulse width of the square wave.

More about this module on Module Page.

Weight 0,14 kg

0.013Hz( One cycle in 74 seconds) – 40Hz

Output LVL


Power consumption

14mA at +12v 16mA at -12v



Max depth


Panel thickness
