Alisa VCF

70,00 130,00

SKU: 1-1-1-1-2-1-1-1 Category:

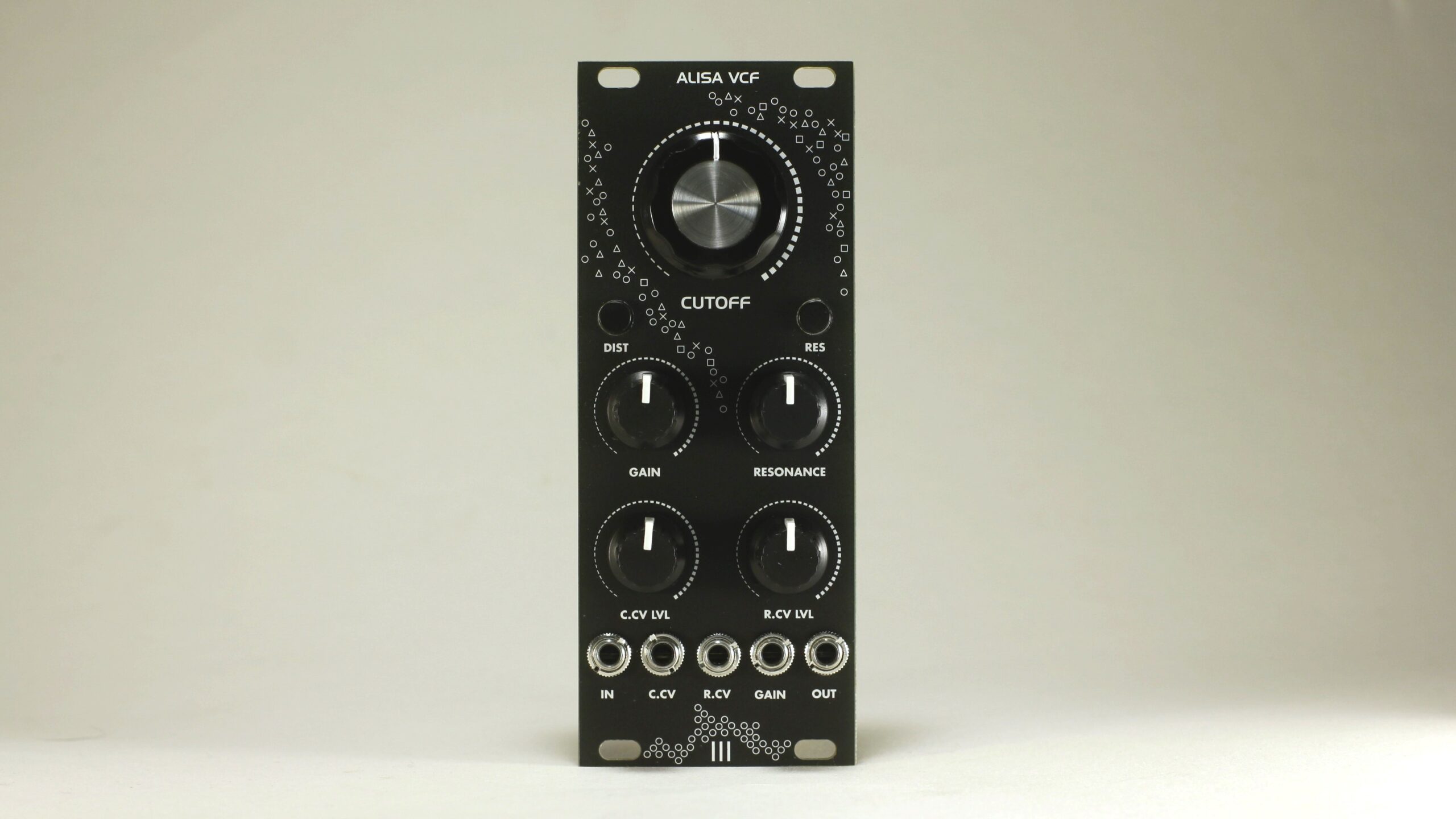

Tre Modular – Alisa VCF is a transistor ladder filter based on the filter section of the Alisa 1387 and Alisa 1377.

Alisa VCF can produce a distinctive, gritty sound and is excellent for adding that nastiness to your patch.

This filter is mostly based on Alisa 1387 but we have added some parts from 1377. Most notably distortion stage from the Alisa 1377 filter. You can choose to route the output and/or resonance through this distortion stage with the press of DIST and RES buttons. This works in all combinations, giving you four unique-sounding filter modes.

We have also included the VCA section of the Alisa 1387 for a more authentic Alisa sound.

Alisa VCF has CV control over Cutoff, Resonance and Gain.

More about this module on Module Page.

Weight 0,14 kg
Power consumption

35mA at +12v
27mA at -12v

Width

10HP

Max depth

2.7cm

Panel thickness

1.6mm
